For more information, or to buy a product online please click on the above tabs.

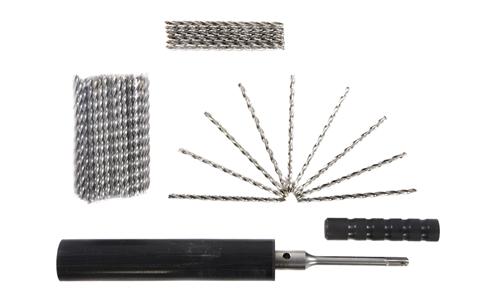

Tim-Fix Ties



Tim-Fix

What is Tim-fix used for? Structural fixings for warm roof counter batten systems and vertical tile hanging systems. Tim-fix have special helical features which protect insulation sarking boards from roof weight compression loads side loads and wind suction tension loads, while its small constant core diameter allows it to be used in thin counter batten timbers while still conforming to CP112 1972, Unlike standard wire nails.

Timfix has been approved for use, by leading insulation sarking manufacture’s like Celotex, Kingspan, British Gypsum, Ecotherm & Rockwool.

Benefits & Features:
- Quick installation, installed like a nail, grips like a screw
- Protect insulation from roof weights
- High tensile strength to resist wind loads
- Available in lengths from 75mm to 200mm in 5mm increments
- Allows for close to edge fixing without causing thin timbers to split
- Technical recommendation in brochure WF 498
- Austentic 304 or 316 stainless steel
- Headless fixings which allow tile battens to be laid easily over the top
- High resistance to bending moments, due to three equally spaced fins rotating around the same core



Crete-Tie Installation


Crete-Tie Installation


Size Price Qty Add to Cart
100 Tim Fix Nails 6mm x 90mm

£22.49
100 Tim Fix Nails 6mm x 100mm

£25.00
100 Tim Fix Nails 6mm x 105mm

£26.25
100 Tim Fix Nails 6mm x 110mm

£27.50
100 Tim Fix Nails 6mm x 115mm

£28.76
100 Tim Fix Nails 6mm x 120mm

£30.06
100 Tim Fix Nails 6mm x 125mm

£31.23
100 Tim Fix Nails 6mm x 130mm

£32.50
100 Tim Fix Nails 6mm x 135mm

£33.76
100 Tim Fix Nails 6mm x 140mm

£35.01
100 Tim Fix Nails 6mm x 145mm

£36.25
100 Tim Fix Nails 6mm x 150mm

£37.50
100 Tim Fix Nails 6mm x 155mm

£38.75
100 Tim Fix Nails 6mm x 160mm

£39.91
100 Tim Fix Nails 6mm x 165mm

£41.25
100 Tim Fix Nails 6mm x 170mm

£42.50
100 Tim Fix Nails 6mm x 175mm

£43.75
100 Tim Fix Nails 6mm x 180mm

£45.00
100 Tim Fix Nails 6mm x 185mm

£46.25
100 Tim Fix Nails 6mm x 190mm

£47.49
100 Tim Fix Nails 6mm x 195mm

£47.91
100 Tim Fix Nails 6mm x 200mm

£48.55
Tim Fix Hand Support Tool

£15.75
SDS Power Install Tool

£115.00


Size Buy 2 Buy 3+ Buy 5+ Buy 8+
100 Tim Fix Nails 6mm x 90mm £21.37 £20.69 £20.24

£19.79
100 Tim Fix Nails 6mm x 100mm £23.75 £23.00 £22.50 £22.00
100 Tim Fix Nails 6mm x 105mm

£24.94

 £24.15 £23.63 £23.10
100 Tim Fix Nails 6mm x 110mm £26.12 £25.30 £24.75 £24.20
100 Tim Fix Nails 6mm x 115mm £27.32 £26.46 £25.88 £25.31
100 Tim Fix Nails 6mm x 120mm £28.56 £27.66 £27.06 £26.45
100 Tim Fix Nails 6mm x 125mm £29.67 £28.73 £28.10 £27.48
100 Tim Fix Nails 6mm x 130mm £30.87 £29.90 £29.25 £28.60
100 Tim Fix Nails 6mm x 135mm £32.07 £31.06 £30.38 £29.71
100 Tim Fix Nails 6mm x 140mm £33.26 £32.21 £31.51 £30.81
100 Tim Fix Nails 6mm x 145mm £34.43 £33.35 £32.62 £31.90
100 Tim Fix Nails 6mm x 150mm £35.62 £34.50 £33.75 £33.00
100 Tim Fix Nails 6mm x 155mm £36.81 £35.65 £34.87 £34.10
100 Tim Fix Nails 6mm x 160mm £37.91 £36.72 £35.92 £35.12
100 Tim Fix Nails 6mm x 165mm £39.19 £37.95 £37.13 £36.30
100 Tim Fix Nails 6mm x 170mm £40.38 £39.10 £38.25 £37.40
100 Tim Fix Nails 6mm x 175mm £41.57 £40.25 £39.38 £38.50
100 Tim Fix Nails 6mm x 180mm £42.75 £41.40 £40.50 £39.60
100 Tim Fix Nails 6mm x 185mm £43.94 £42.55 £41.63 £40.70
100 Tim Fix Nails 6mm x 190mm £45.12 £43.69 £42.74 £41.79
100 Tim Fix Nails 6mm x 195mm £45.52 £44.08 £43.12 £42.16
100 Tim Fix Nails 6mm x 200mm £46.12 £44.67 £43.70 £42.73




Wind Speed Zones

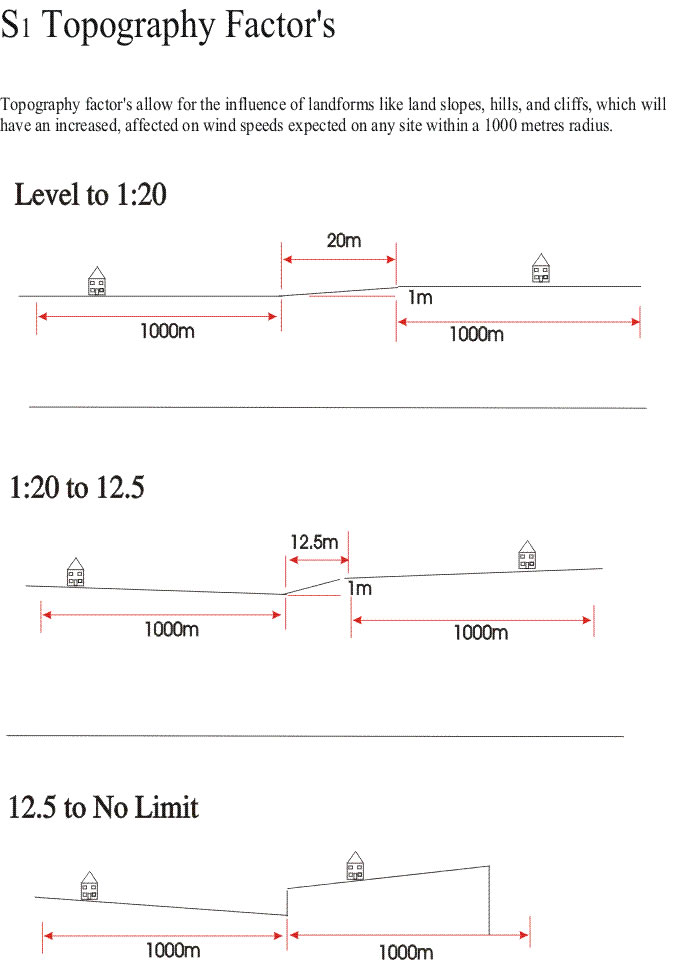

Topography



Fixing Density to Resist Wind Loads

Table 1 below will show the number of Tim-fix per metre squared to resist wind suction loads in different locations in Great Britain and taking topography factors and batten thickness into consideration.

TABLE 1

Minimum Tim-fix / Sq metre to Resist Wind Suction Loads

Wind Zone
A
B
C
Slope Of Land
Level to1:20
1:20 to
1:12.5
1:12.5 to N/L
Level to1:20
1:20 to
1:12.5
1:12.5 to N/L
Level to1:20
1:20 to
1:12.5
1:12.5 to N/L
Suction Load KN/M2
2.6
3.6
4.7
3.6
4.3
6.6
4.2
5.0
7.6
Counter Batten Thickness 25mm
4.2
6.0
7.8
6.0
7.1
11.0
6.7
8.2
12.7
Counter Batten Thickness 37mm
3.0
3.5
5.2
4.0
4.7
7.2
4.5
5.5
8.5
Counter Batten Thickness 50mm
2.0
2.0
3.8
3.0
3.6
5.5
3.3
4.1
6.2





Fixing Density to Resist Sliding Loads

Table 2 below will show the number of Tim-fix per metre squared to resist sliding loads produced by different roof covering weights and taking roof pitch angle and different insulation thickness into consideration.

TABLE 2



Minimum Tim-fix / Sq Metre to Resist Slide Loads with no stop rails

A= 0 -50mm
Insulation		 B= 51 -60mm
Insulation		 C= 61 -80mm
Insulation
Laid Roof Covering
Weight per KG/M2		 20 40 60 80 100
Insulation Thickness
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
20 Degrees
2.2
3.9
5.1
2.7
4.7
 6.2
3.2
5.5
 7.4
3.7
6.4
 8.5
4.2
7.2
 9.6
30 Degrees
3.3
5.6
7.5
4.0
6.9
 9.1
4.7
8.0
 10.8
5.4
9.3
 12.4
6.0
10.5
 14.0
40 Degrees
3.0
5.1
6.8
3.8
6.6
 8.8
4.7
8.0
 10.8
5.6
9.6
 12.8
6.4
11.0
 14.8
50 Degrees
2.5
4.3
5.7
3.6
6.2
 8.3
4.6
7.9
 10.5
5.7
9.8
 13.0
6.8
11.7
 15.6
60 Degrees
2.0
3.4
4.6
3.2
5.6
 7.4
4.3
7.5
 9.9
5.6
9.6
 12.8
6.8
11.7
 15.6
70 Degrees
1.4
2.4
3.2
2.7
4.6
 3.2
4.0
6.9
 9.3
5.4
9.3
 12.3
6.7
11.6
 15.4
80 Degrees
1.4
2.4
3.3
2.8
4.8
 6.4
4.2
7.2
 9.6
5.6
9.6
 12.8
7.0
12.0
 16.0
90 Degrees
1.5
2.5
3.3
2.9
4.9
 6.6
4.3
7.4
 9.8
5.7
9.8
 13.0
7.1
12.3
 16.4




D= 81 -100mm
Insulation

E= 101mm - 115m
Insulation
Laid Roof Covering
Weight per KG/M2
10
20
30
40
50
60
70
80
90
100
Insulation Thickness
D
E
D
E
D
E
D
E
D
E
D
E
D
E
D
E
D
E
D
E
20 Degrees
 7.4 10.9
8.3
12.3
9.2
13.6
10.0
15.0
11.0
16.3
11.9
17.6
12.8
19.0
13.8
20.4
14.6
21.7
 15.6
23.0
30 Degrees
10.8
 16.0
12.1
18.0
13.5
19.9
14.8
21.9
16.0
23.8
17.4
 /
18.8
 /
20.0
 /
21.4
 / 22.7 /
40 Degrees
 9.2 13.6
11.0
16.4
12.4
18.4
14.3
21.0
15.7
23.2
17.3
 /
19.3
 / 20.1 /
22.6
 / 23.9 /
50 Degrees
7.3
 10.8
9.2
12.2
11.5
17.0
13.4
19.8
15.2
22.5
17.0
 /
19.3
 /
21.1
 /
23.0
 / / /
60 Degrees
5.0
 7.5
7.4
10.9
9.7
14.3
12.0
17.7
13.8
20.4
16.0
23.8
18.4
 /
20.1
 /
23.0
 / / /
70 Degrees
2.5
 3.7
5.0
7.5
7.5
11.0
10.0
14.8
12.5
18.4
15.0
22.2
17.5
 / 20.0 /
22.4
 / 24.9 /
80 Degrees
2.6
 3.9
5.2
7.8
7.8
11.6
10.4
15.4
13.0
19.2
15.6
23.00
18.2
 /
20.1
 /
23.4
 / / /
90 Degrees
2.7
 4.0
5.3
7.9
8.0
11.8
10.6
15.7
13.3
19.6
15.9
23.5

18.6

 /
21.2
 /
23.9
 / / /


Fixing densities highlighted in red are to high to be used on 600mm rafter centres. Where a forward slash is shown ( / ) the fixing densities have gone above 25 fixing per square metre which is too high to be used on 400mm rafter centres in both cases consult your insulation supplier about using a two layer system, or install stop battens and use TABLE 2A



NOTE: Fixing Density in Tables 1 & 2 are for buildings up to a height of 15mtrs. For applications above 15mtrs to 200mtrs fixing density must be multiplied by a factor of 1.52



Reduced fixing densities can be used on thicker insulation and heavier roof weights when stop battens are installed to roofs with rafter centres no wider then  600mm

All stop battens must be installed at eaves level. If roof spans are longer than 8 metres an additional stop batten must  be introduced at middle span. If roof spans are longer than 16 metres two additional Stop battens must be introduced at third spans. All stop rails must be the same thickness as the insulation being and double fixed to all rafters



TABLE 2A

Minimum Tim-fix / Sq Metre to Resist Slide Loads with stop Battens



F= 61 -80mm
Insulation		 G= 81 -100mm
Insulation
H= 101 -115mm
Insulation
Laid Roof Covering
Weight per KG/M2		 40 50 60 70 80 90 100
Insulation Thickness
F
G
H
F
G
H
F
G
H
F
G
H

F
G

H

F
G

H
F
G
H
20 Degrees
 4.0 4.0 5.0 4.0 4.0 6.0 5.0 4.0 7.0 5.0 5.0 8.0 6.0 6.0 10.0 6.0 7.0 11.0 6.0 8.0 13.0
30 Degrees
 5.0 7.0 11.0 6.0 9.0 13.0 7.0 10.0 15.0 8.0 11.0 17.0 9.0 13.0 19.0 9.0 14.0 21.0 10.0 15.0 23.0
40 Degrees
 5.0 7.0 11.0 6.0 8.0 13.0 7.0 10.0 16.0 8.0 12.0 18.0 9.0 13.0 21.0 9.0 15.0 23.0 10.0 16.0 /
50 Degrees
 5.0 6.0 9.0 6.0 8.0 12.0 7.0 10.0 15.0 8.0 12.0 18.0 9.0 13.0 21.0 10.0 16.0 24.0 11.0 18.0 /
60 Degrees
 4.0 5.0 7.0 5.0 6.0 10.0 6.0 9.0 13.0 7.0 11.0 17.0 9.0 13.0 20.0 10.0 16.0 24.0 11.0 18.0 /
70 Degrees
 4.0 4.0 4.0 4.0 5.0 8.0 6.0 8.0 13.0 7.0 10.0 15.0 9.0 13.0 19.0 10.0 15.0 23.0 11.0 17.0 /
80 Degrees
 4.0 4.0 5.0 4.0 6.0 9.0 6.0 8.0 13.0 7.0 11.0 17.0 9.0 13.0 20.0 10.0 16.0 24.0 12.0 18.0 /
90 Degrees
 4.0 4.0 5.0 4.0 6.0 9.0 6.0 8.0 13.0 7.0 11.0 18.0 9.0 14.0 21.0 10.0 16.0 25.0 12.0 19.0 /


Fixing densities highlighted in red are to high to be used on 600mm rafter centres. Where a forward slash is shown ( / ) the fixing densities have gone above 25 fixing per square metre which is to high to be used on 400mm rafter centres in both cases consult your insulation supplier about using a two layer system.



NOTE: Fixing Density in Tables 1 & 2 are for buildings up to a height of 15mtrs. For applications above 15mtrs to 200mtrs fixing density must be multiplied by a factor of 1.52





Tim-fix Density for a Specific Job

After making reference to Table 1 & 2 or 2A select the highest Tim-fix/M2 fixing density and use in Table 3 below .

Use the column showing which rafter centres you have, then select a figure closest or slightly higher then Tim-fix/M2 fixing density from Table 1 and 2 then follow the row to give you the counter batten fixing centres in mm.


TABLE 3

Fixing Centres for Tim-fix Using Different Fixing Densities & Rafter Centres

Counter batten Fixing Centre

 Rafter Centres - mm
400
450
600
1200
100

25.0

 22.2 16.7 8.3
125
20.0
 17.8 13.3 6.7
150
16.7
 14.8 11.1 5.6
175
14.3
 12.7 9.5 4.8
200
12.5
 11.1 8.4 4.2
225
11.1
 9.8 7.3 3.7
250
10.0
 8.9 6.7 3.4
275
9.1
 8.0 6.0 3.0
300
8.3
 7.3 5.5 2.8
325
7.7
 6.5 5.2 2.6
350
7.2
 6.0 4.8 2.4
375
6.7
 5.9 4.5 2.3
400
6.3
 5.6 4.2 2.1

Quantity of Tim-fix required can be worked out by multiplying the above selected fixing density in Table 3 by the total  roof area metre squared.

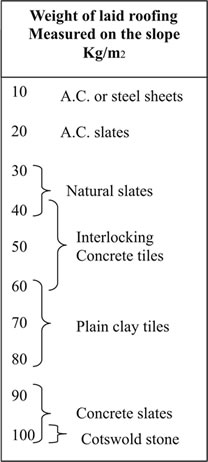

Laid Weight






Installation Procedure



Structual Fixings for Warm Roof Counter Batten Systems


Installation Procedure



To save the file to your computer, right click on the following link and select "save file as..."

www.wallfast.co.uk/pdf/Tim-fix.pdf

To save the file to your computer, right click on the following link and select "save file as..."

www.wallfast.co.uk/pdf/Tim-fix-spec-form.pdf










For removing mortar when isolating ties. 4mm Blade x 230mm Long.
Additional resin mixing nozzles.
For extending the length of the mixer nozzle when working across cavities.
Applicator Gun to fit 300ml resin tubes.
Full range of masonry and SDS drill bits.
Triset is a rapid curing 'one shot' two part chemical anchoring cartridge system based on a polyester resin. Applied in one single action to produce a cost effective, tough, chemical resistant fixing.
Cem-spand is a specially formulated High performance injectable cementitious grout for bonding metal to all types of common masonry substrates.
Wall tie SDS power installation tool used for installing Wallfast wall ties.
Resin gun used for installing Wallfast resin.
Metal detector for locating corroded wall ties in masonry.
Manual air pump used for clearing dust and debris from installation holes.
Tri-bars are three finned helical stainless steel reinforcement rods, for reinforcing bed-joints to enhance lateral loading resistance in new and existing buildings.
Fast-fix wall tie replacement and masonry repair system can be used to re-tie and repair a wide range of different materials like air-crete blocks, clay bricks and stone.
For tying cavity party walls when improved sound insulation is required and tying all types of masonry cavities requiring class 2 bed-joint ties.
For tying light weight thermal blocks to masonry bed-joints, forming cavities using thin joint block construction systems and tying cavities and abutting walls bed-joints to thermal blocks.
For tying Polar walls to masonry clad bed-joints. Two install methods can be used for before or after concrete cure.
For tying cavities, when rebuilding unstable outer leaves to existing inner leaves, forming cavities by adding outer clad brickwork to existing masonry walls and joining cavity or abutting masonry walls when adding extension to properties.
For tying new timber stud frames to masonry bed joints and forming cavities using timber frame construction systems.
Bow-Fix is a lateral restraint system, which offers a quick and easy method of restraining bowing walls to timber floor chambers.
Cem-Fix masonry stabilising system is a combination of our special Cemspand cementitious grout with controllable expanding agent and our Cem-Fix reinforcement rods brought together to give a fast and cost effective set of masonry repair strategies to re-stabilising multi brick arches, brick tunnels, rubble filled walls and seperated party walls.
The Resi-Fix cavity wall tie replacement system, for when a resin bond is required in both inner and outer leafs of different materials like, air-crete blocks, clay bricks, stone and concrete blocks. This is ideal for small one off jobs of around 30-200 ties.
The versatile Tri-Fix wall tie replacement system can be used to tie together a large range of differing materials like timber, air-crete blocks, clay bricks, stone, concrete blocks and steel beams.
Speed-Fix is a multi purpose headless fixing, that can be installed like a nail and performs like a screw. With no need of any wall plugs. Installing Speed-fix is the quickest way of joining timber carcass or mouldings to all types of masonry. Speed-fix can be hammered straight through timber and Air-Crete blocks or fix timber to harder masonry materials by using a pilot hole. In addition it is a very strong structural timber to timber fixing which will not come apart under spring tension loads. Speed-fix can also be used to tie frames to bed joints. Speed-fix has a small core diameter which allow it to be used in thin timbers without causing splitting while still conforming to CP112 1972, unlike standard wire nails.
Tim-Fix is used for structual fixings for warm roof counter batten systems and vertical tile hanging systems. Tim-Fix have special helical features which protect insulation sarking boards from roof weight compression loads and wind suction tension loads, while its small constant core diameter allows it to be used in thin counter batten timbers while still conforming to CP112 1972, unlike standard wire nails.
Crack Repair is a website from Wallfast specialising in crack repair solutions.
