Re-Tie Wall Ties


Re-Tie

Re-Tie has the following uses:
- For tying cavities, when rebuilding unstable outer leaves to existing inner leaves.
- Forming cavities by adding outer clad brickwork to existing masonry walls.
- Joining cavity or abutting masonry walls when adding extension to properties.

Re-Ties need not be installed at an angle and then bent back when fixing to strong mortar beds or in the middle of blocks or concrete beams. They can be installed parallel with mortar joints of new masonry walls.

Benefits & Features:

- Quick installation.
- Lateral flexibility overcomes any misalignment.
- Allows for close edge fixing
- Allows for thermal movement.
- Multi water drips.
- Easily installed through cavity insulation.

- Designed and tested to EN10088.
- Stress free fixing.
- Austentic 304 or 316 stainless steel.
- Effective in tying cavity and solid walls.
- Small cross area gives good sound proofing.

Installation Procedure

Re-Tie Installation

1. To avoid fixing into a weak mortar joint, drill 30° down with recommended pilot drill to required depth, see table A.

Re-Tie Installation

2. Drive tie into hole by hammering support tool with a hammer or SDS power drill.

Re-Tie Installation

3. Using support tool, bend tie until level with outer mortar bed.

Re-Tie

4. Embed outer tie end in mortar of new outer leaf masonry.





Adding abutted partition waals or continuing cavity walls with a parallel fixing.

Re-Tie Installation




Size Price Qty Add to Cart
10 Re-Tie Ties 8mm x 160mm

£7.19
10 Re-Tie Ties 8mm x 180mm

£7.81
10 Re-Tie Ties 8mm x 200mm

£8.13
10 Re-Tie Ties 8mm x 220mm

£8.75
10 Re-Tie Ties 8mm x 245mm

£9.38
10 Re-Tie Ties 8mm x 270mm

£10.00
10 Re-Tie Ties 8mm x 295mm

£10.63
10 Re-Tie Ties 8mm x 390mm

£15.63
10 Re-Tie Ties 8mm x 410mm

£16.25
10 Re-Tie Ties 8mm x 430mm

£16.87
10 Re-Tie Ties 8mm x 450mm

£17.50
100 Re-Tie Ties 8mm x 160mm

£59.91
100 Re-Tie Ties 8mm x 180mm

£65.12
100 Re-Tie Ties 8mm x 200mm

£67.71
100 Re-Tie Ties 8mm x 220mm

£72.92
100 Re-Tie Ties 8mm x 245mm

£78.14
100 Re-Tie Ties 8mm x 270mm

£83.35
100 Re-Tie Ties 8mm x 295mm

£88.56
100 Re-Tie Ties 8mm x 390mm

£130.23
100 Re-Tie Ties 8mm x 410mm

£135.44
100 Re-Tie Ties 8mm x 430mm

£140.66
100 Re-Tie Ties 8mm x 450mm

£145.87
Masonry Drill Bit 4.5mm x 150mm

£1.31
Masonry Drill Bit 6.0mm x 150mm

£1.59
Re-Tie Hand Install Tool

£27.30


Size Buy 2 Buy 3+ Buy 5+
10 Re-Tie Ties 8mm x 160mm £6.83 £6.62 £6.47
10 Re-Tie Ties 8mm x 180mm £7.42 £7.19 £7.03
10 Re-Tie Ties 8mm x 200mm £7.72 £7.48 £7.31
10 Re-Tie Ties 8mm x 220mm

£8.31

 £8.05 £7.87
10 Re-Tie Ties 8mm x 245mm £8.91 £8.63 £8.44
10 Re-Tie Ties 8mm x 270mm £9.50 £9.20 £9.00
10 Re-Tie Ties 8mm x 295mm £10.09 £9.78 £9.56
10 Re-Tie Ties 8mm x 390mm £14.85 £14.38 £14.07
10 Re-Tie Ties 8mm x 410mm £15.44 £14.95 £14.63
10 Re-Tie Ties 8mm x 430mm £16.03 £15.52 £15.19
10 Re-Tie Ties 8mm x 450mm £16.63 £16.10 £15.75
100 Re-Tie Ties 8mm x 160mm £56.92 £55.12 £53.92
100 Re-Tie Ties 8mm x 180mm £61.86 £59.91 £58.61
100 Re-Tie Ties 8mm x 200mm £64.33 £62.30 £60.94
100 Re-Tie Ties 8mm x 220mm £69.28 £67.09 £65.63
100 Re-Tie Ties 8mm x 245mm £74.23 £71.89 £70.33
100 Re-Tie Ties 8mm x 270mm £79.18 £76.68 £75.01
100 Re-Tie Ties 8mm x 295mm £84.13 £81.47 £79.70
100 Re-Tie Ties 8mm x 390mm £123.72 £119.81 £117.21
100 Re-Tie Ties 8mm x 410mm £128.67 £124.60 £121.90
100 Re-Tie Ties 8mm x 430mm £133.63 £129.41 £126.59
100 Re-Tie Ties 8mm x 450mm £138.57 £134.20 £131.28




To save the file to your computer, right click on the following link and select "save file as..."

www.wallfast.co.uk/pdf/Re-tie.pdf












For removing mortar when isolating ties. 4mm Blade x 230mm Long.
Additional resin mixing nozzles.
For extending the length of the mixer nozzle when working across cavities.
Applicator Gun to fit 300ml resin tubes.
Full range of masonry and SDS drill bits.
Triset is a rapid curing 'one shot' two part chemical anchoring cartridge system based on a polyester resin. Applied in one single action to produce a cost effective, tough, chemical resistant fixing.
Cem-spand is a specially formulated High performance injectable cementitious grout for bonding metal to all types of common masonry substrates.
Wall tie SDS power installation tool used for installing Wallfast wall ties.
Resin gun used for installing Wallfast resin.
Metal detector for locating corroded wall ties in masonry.
Manual air pump used for clearing dust and debris from installation holes.
Tri-bars are three finned helical stainless steel reinforcement rods, for reinforcing bed-joints to enhance lateral loading resistance in new and existing buildings.
Fast-fix wall tie replacement and masonry repair system can be used to re-tie and repair a wide range of different materials like air-crete blocks, clay bricks and stone.
For tying cavity party walls when improved sound insulation is required and tying all types of masonry cavities requiring class 2 bed-joint ties.
For tying light weight thermal blocks to masonry bed-joints, forming cavities using thin joint block construction systems and tying cavities and abutting walls bed-joints to thermal blocks.
For tying Polar walls to masonry clad bed-joints. Two install methods can be used for before or after concrete cure.
For tying cavities, when rebuilding unstable outer leaves to existing inner leaves, forming cavities by adding outer clad brickwork to existing masonry walls and joining cavity or abutting masonry walls when adding extension to properties.

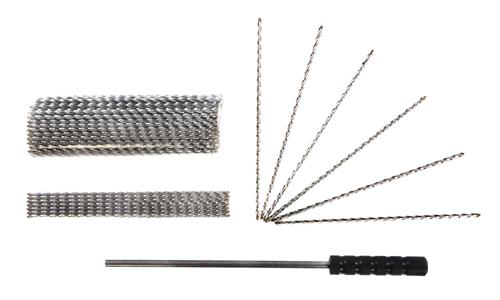

For tying new timber stud frames to masonry bed joints and forming cavities using timber frame construction systems.
