Catalogue | Grouts & Resins | Cementitious Grout

  • General Information
  • Buy Online
  • Data Sheet

For more information, please click on the above tabs.


Grout



Cem-spand is a specially formulated High performance injectable cementitious grout for bonding metal to all types of common masonry substrates. Cem-spand has the added benefit of being able to control its properties to suit the required applications when carrying out structural works and repairs. Cem-spand is supplied in a bucket container with a controlled amounts of clean aggregates, liquid milk and required amounts expanding agent.



Size Price Qty Add to Cart
Cementitious Grout 5 Kilos

£38.75
Cementitious Grout 10 Kilos

£73.71



Size Price Qty Add to Cart
Cementitious Grout 5 Kilos

£38.75
Cementitious Grout 10 Kilos

£73.71


Cem-spand is a specially formulated High performance injectable cementitious grout for bonding metal to all types of common masonry substrates. Cem-spand has the added benefit of being able to control its properties to suit the required applications when carrying out structural works and repairs. Cem-spand is supplied in a bucket container with a controlled amounts of clean aggregates, liquid milk and required amounts expanding agent.

Benefits

- Controlled Expansion
- Controlled Compression Strength
- Thixotropic Grout
- Rapidly Cures and Develops High Compressive Strength
- Clean, Safe and Easy to Use

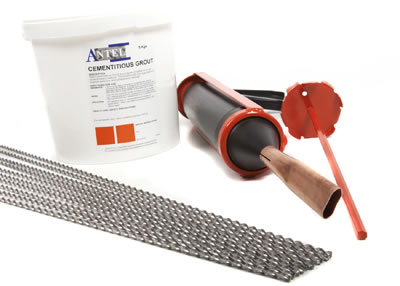

Cem-Spand with Injection Gun

Cem-Spand with injection gun

Testing Compression Strength

Testing Compression Strength


Monitoring Expansion

Monitoring Expansion


Compression strength with different amounts of expanding agents per 5 Kgs

3 GMS of Expanding Agent Day 1  Days 7 Days 28
Compression strength 9.9 N/mm2 44.0 N/mm2 52.0 N/mm2
Expansion  1% 1% 1%
Cube Size  100mm 100mm 100mm
Cube mass 1940g 1876g 1899g
Density  1940 kg/m3 1880 kg/m3 1900 kg/m3
Failure Load 99.1 kN   442 kN    522 kN
12 GMS of Expanding Agent Day 1  Days 7 Days 28
Compression strength 11.0 N/mm2 27.5 N/mm2 30.5 N/mm2
Expansion 4%  4% 4%
Cube Size  100mm 100mm 100mm
Cube mass  1787g   1775g    1736g
Density  1790 kg/m3 1780 kg/m3     1740 kg/m3
Failure Load 110 kN 274 kN 304 kN
25 GMS of Expanding Agent Day 1  Days 7 Days 28
Compression strength 7.7 N/mm2 15.0 N/mm2 18.5 N/mm2
Expansion 16% 16% 16%
Cube Size  100mm 100mm 100mm
Cube mass 1558g 1580g 1560g
Density  1560 kg/m3 1580 kg/m3 1560 kg/m3
Failure Load 76.7 kN 152 kN 165 kN
50 GMS of Expanding Agent Day 1  Days 7 Days 28
Compression strength 7.2 N/mm2 12.0 N/mm2   13.5 N/mm2
Expansion   20%  20% 20%
Cube Size  100mm 100mm 100mm
Cube mass 1579g   1520g 1580g
Density  1580 kg/m3 1520 kg/m3 1580kg/m3
Failure Load 71.9 kN   119 kN    133 kN
100 GMS of Expanding Agent Day 1  Days 7 Days 28
Compression strength 0.7 N/mm2 3.7 N/mm2 4.9 N/mm2
Expansion 40% 40% 40%
Cube Size  100mm 100mm 100mm
Cube mass 1248g 1258g 1283g
Density  1250 kg/m3 1260 kg/m3 1280kg/m3
Failure Load 7.4 kN 37.0 kN 48.7 kN
