Crete-Tie Wall Ties


Crete-Tie

Crete-Tie is used for:
- For tying light weight thermal blocks to masonry bed-joints.
- Forming cavities using thin joint block construction systems.
- Tying cavities and abutting walls bed-joints to thermal blocks.

Benefits & Features:

- Quick installation .
- Lateral flexibility overcomes any misalignment.
- Allows for close to edge fixing.
- Allows for thermal movement.
- Multi water drips.
- Easy installed through cavity insulation.
- Stress free fixing.
- Austentic 304 or 316 stainless steel.
- Effective in tying cavity and solid walls.
- Small cross area gives good sound proofing.

Installation

Crete-Tie Installation

1. Insert tie into support tool .

Crete-Tie Installation

2. Position tie where required and level with outer mortar bed.

Crete-Tie Installation

3. Hammer tie through insulation and into Air-Crete Block, then fit the retaining clip.

Crete-Tie Installation



4. Embed outer tie end in mortar of outer leaf masonry.

Crete-Tie Classification



Crete-Tie Length Selection


Size Price Qty Add to Cart
100 Crete Ties 8mm x 220mm

£51.46
100 Crete Ties 8mm x 245mm

£57.31
100 Crete Ties 8mm x 270mm

£62.52
100 Crete Ties 8mm x 295mm

£69.80
SDS Support Tool - Cavity Range = 25-70

£52.36
SDS Support Tool - Cavity Range = 50-95

£54.57
SDS Support Tool - Cavity Range = 75-120

£56.77
SDS Support Tool - Cavity Range = 120-150

£54.57


Size Buy 2 Buy 3+ Buy 5+ Buy 8+
100 Crete Ties 8mm x 220mm £48.89 £47.34 £46.31

£45.29
100 Crete Ties 8mm x 245mm £54.44 £52.72 £51.58 £50.43
100 Crete Ties 8mm x 270mm £59.39 £57.52 £56.27 £55.01
100 Crete Ties 8mm x 295mm £66.31 £64.22 £62.82 £61.43


Wind Speed Zones

Tie Loads & Densities

The densities and spacing
Ties per M2
Vertical Centres
Horizontal Centres

EN10088 classification
2.5
450mm
900mm
  Type 4
3.3
450mm
675mm
   Type 3
5.0
450mm
450mm
   Type 2

B.S. 5628 requires extra ties at 300mm vertical spacing's to either side of all openings. i.e. doors & window reveals

DD 140: Part 2: 1987 Classification by end use
Classification

Type of structure and frequency of tying Geographical location
Type 1.
(Masonry: Heavy duty)		 Suitable for most masonry cavity walls. Not very flexible and should not be specified where large adjustments are likely to be needed during construction, where large differential movements are expected to take place between  the leaves, or where very low strength masonry units are in use
Suitable for buildings anywhere in the British Isles, i.e. where the basic wind speed may be up to 56 m/s (see wind zones)
Type 2. (Masonry: General purpose) Suitable for masonry cavity walls of domestic houses and small commercial buildings of up to three storeys, i.e. not
greater than 15 m in height, comprising two leaves of brick or block work of similar thickness in the range 90 mm  to 150 mm.

May be suitable for cavity walls having leaves of disparate thickness or stiffness or for cladding walls in high rise buildings, but should only be used in these situations if shown to be of adequate performance by calculation

Suitable for buildings anywhere in the British Isles, i.e. where the basic wind speed may be up to56 m/s (see wind zones)
Type 3. (Masonry: Basic) Suitable for masonry cavity walls of domestic houses and small commercial buildings of up to three storeys, i.e. not
greater than 15 m in height, comprising two leaves of brick or block work of similar thickness in the range of 90 mm to 150 mm May be suitable for cavity walls having leaves of disparate  thickness or stiffness or for cladding walls in high rise  buildings, but should only be used in these situations if shown to be of adequate
performance by calculation
Suitable for buildings anywhere in England where the basic wind speed does not exceed 44 m/s or for buildings on town or city sites in areas where the basic wind speed does not exceed 52 m/s (see wind zones)
Type 4. (Masonry: Light duty) Suitable only for masonry cavity walls, comprising two leaves of similar thickness in the range 90 mm to 150 mm, in box-form domestic dwellings of up to two storeys and not greater than 10 m in height Not suitable for cavity walls having leaves of disparate thickness or stiffness, for cladding walls of any type or for multi-storey structures, of more than two storeys

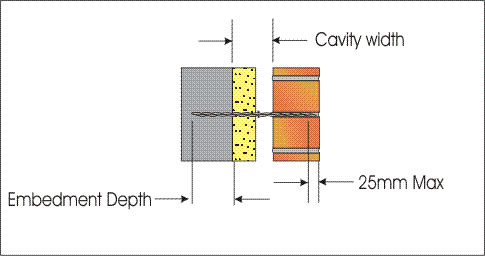

Tie Selection


Inner Leaf Embedment
Cavity Range
90mm
25mm to 50mm
220mm
50mm to 75mm
245mm
75mm to 100mm
270mm
100mm to 125mm
295mm
125mm to 150mm



Tie Selection

Tie Spacing


Tie Spacing

Installation Procedure

Crete Tie has been approved for use, by all leading light weight block manufacture’s

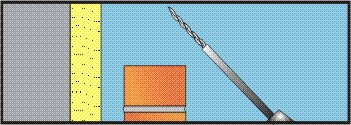

1 (1) Insert tie into support tool.

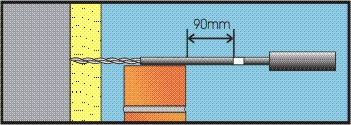

2 (2) Push front end of tie through any insulation
until touching block, then measurer back 90mm
from the front face of brickwork and mark support
tool with tape, Position tie where required and
level with outer mortar bed.

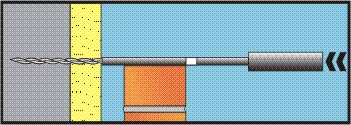

3 (3) Hammer tie through insulation and into
Air-Crete Blocks.

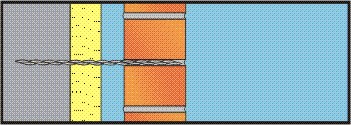

4 (4) Embed outer tie end in mortar of outer
leave masonry.



To save the file to your computer, right click on the following link and select "save file as..."

www.wallfast.co.uk/pdf/Crete-tie.pdf












For removing mortar when isolating ties. 4mm Blade x 230mm Long.
Additional resin mixing nozzles.
For extending the length of the mixer nozzle when working across cavities.
Applicator Gun to fit 300ml resin tubes.
Full range of masonry and SDS drill bits.
Triset is a rapid curing 'one shot' two part chemical anchoring cartridge system based on a polyester resin. Applied in one single action to produce a cost effective, tough, chemical resistant fixing.
Cem-spand is a specially formulated High performance injectable cementitious grout for bonding metal to all types of common masonry substrates.
Wall tie SDS power installation tool used for installing Wallfast wall ties.
Resin gun used for installing Wallfast resin.
Metal detector for locating corroded wall ties in masonry.
Manual air pump used for clearing dust and debris from installation holes.
Tri-bars are three finned helical stainless steel reinforcement rods, for reinforcing bed-joints to enhance lateral loading resistance in new and existing buildings.
Fast-fix wall tie replacement and masonry repair system can be used to re-tie and repair a wide range of different materials like air-crete blocks, clay bricks and stone.
For tying cavity party walls when improved sound insulation is required and tying all types of masonry cavities requiring class 2 bed-joint ties.
For tying light weight thermal blocks to masonry bed-joints, forming cavities using thin joint block construction systems and tying cavities and abutting walls bed-joints to thermal blocks.
For tying Polar walls to masonry clad bed-joints. Two install methods can be used for before or after concrete cure.
For tying cavities, when rebuilding unstable outer leaves to existing inner leaves, forming cavities by adding outer clad brickwork to existing masonry walls and joining cavity or abutting masonry walls when adding extension to properties.
For tying new timber stud frames to masonry bed joints and forming cavities using timber frame construction systems.
Bow-Fix is a lateral restraint system, which offers a quick and easy method of restraining bowing walls to timber floor chambers.
Cem-Fix masonry stabilising system is a combination of our special Cemspand cementitious grout with controllable expanding agent and our Cem-Fix reinforcement rods brought together to give a fast and cost effective set of masonry repair strategies to re-stabilising multi brick arches, brick tunnels, rubble filled walls and seperated party walls.
The Resi-Fix cavity wall tie replacement system, for when a resin bond is required in both inner and outer leafs of different materials like, air-crete blocks, clay bricks, stone and concrete blocks. This is ideal for small one off jobs of around 30-200 ties.
The versatile Tri-Fix wall tie replacement system can be used to tie together a large range of differing materials like timber, air-crete blocks, clay bricks, stone, concrete blocks and steel beams.
Speed-Fix is a multi purpose headless fixing, that can be installed like a nail and performs like a screw. With no need of any wall plugs. Installing Speed-fix is the quickest way of joining timber carcass or mouldings to all types of masonry. Speed-fix can be hammered straight through timber and Air-Crete blocks or fix timber to harder masonry materials by using a pilot hole. In addition it is a very strong structural timber to timber fixing which will not come apart under spring tension loads. Speed-fix can also be used to tie frames to bed joints. Speed-fix has a small core diameter which allow it to be used in thin timbers without causing splitting while still conforming to CP112 1972, unlike standard wire nails.
Tim-Fix is used for structual fixings for warm roof counter batten systems and vertical tile hanging systems. Tim-Fix have special helical features which protect insulation sarking boards from roof weight compression loads and wind suction tension loads, while its small constant core diameter allows it to be used in thin counter batten timbers while still conforming to CP112 1972, unlike standard wire nails.
